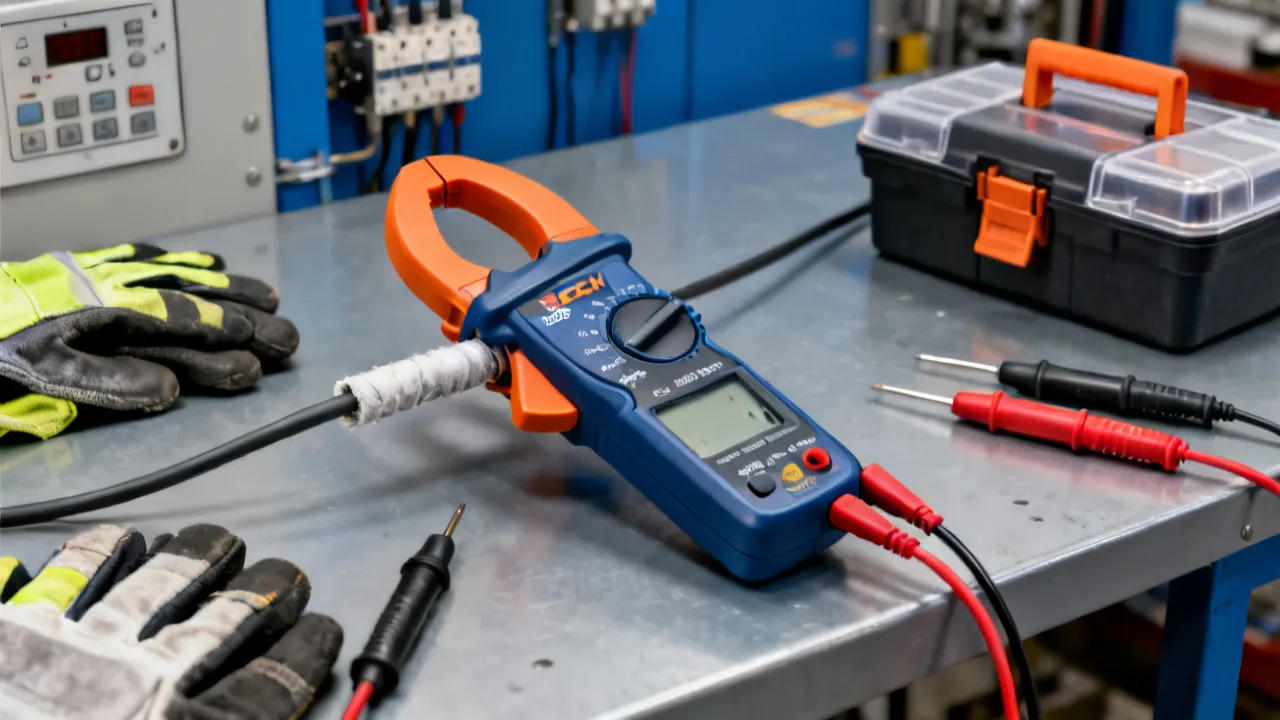

This guide explains how the Extech EX900 clamp meter can support electrical testing, maintenance, and troubleshooting when selected and used correctly. The Extech EX900 is a professional test instrument associated with clamp-based current measurement and broader multimeter functions, allowing technicians to evaluate circuits without disconnecting conductors in many situations. Its suitability depends on measurement category, current type, conductor size, environmental conditions, calibration status, and the requirements stated in the manufacturer’s documentation.
The Extech EX900 is a clamp-style electrical test instrument intended for technicians who need to measure current and perform related electrical checks in practical field conditions. Its central advantage is the ability to measure current by placing the clamp around a conductor rather than routing the entire circuit through a conventional meter input. That approach can reduce interruption to a circuit and is particularly useful during maintenance, commissioning, fault investigation, and routine inspection.
However, a clamp meter should never be judged by its current range alone. The important questions are whether the instrument is suitable for alternating current, direct current, voltage, resistance, continuity, frequency, capacitance, temperature, or other measurements required by the job; whether its safety category matches the installation; whether the jaws fit around the conductor; and whether the displayed accuracy is adequate for the decision being made.
For this reason, the Extech EX900 should be treated as a measurement system rather than simply a handheld gadget. The meter, test leads, accessories, battery condition, calibration status, operating environment, and user technique all influence the quality of a result. A technically experienced user will also distinguish between a reading that is numerically precise and a reading that is genuinely reliable.
Key practical conclusion: The Extech EX900 may be a useful choice for electrical professionals who need clamp-based current measurement combined with common multimeter functions. Before purchase or deployment, verify the current and voltage ranges, measurement accuracy, safety ratings, jaw capacity, included accessories, and the latest manufacturer documentation.
Clamp meters are designed around a simple but powerful principle. A current flowing through a conductor creates a magnetic field. The clamp mechanism detects that field and converts it into a reading on the instrument’s display. Depending on the design, the meter may use different sensing methods for alternating-current and direct-current measurements. The user does not normally need to open the circuit to obtain a current reading, which is one reason clamp meters are widely used in service work.
The Extech EX900 belongs to the category of higher-capability handheld meters rather than basic single-purpose current testers. Product descriptions commonly associate the model with AC/DC current measurement and additional electrical functions. Because specifications, packaging, firmware, and regional listings can change, buyers should confirm the exact configuration with the current manufacturer datasheet or an authorized supplier before relying on a particular feature.
In practical terms, an instrument of this type can be relevant to several user groups:
The meter is not a substitute for an insulation resistance tester, power-quality analyzer, earth resistance tester, or specialized high-voltage diagnostic instrument. It may assist with initial investigation, but the selected instrument must correspond to the hazard and the measurement objective.
Its value is therefore greatest when it is used as part of a planned troubleshooting process. A technician might begin by reviewing drawings, equipment nameplate information, previous service records, and reported symptoms. The clamp meter can then provide current and voltage observations that support or challenge an initial hypothesis. This is more effective than randomly checking every accessible conductor and attempting to interpret isolated values after the fact.
The very visible function of the Extech EX900 is clamp-based current measurement. That capability can be valuable when a technician needs to observe the current in an operating circuit while avoiding unnecessary disconnection. For example, a maintenance worker may compare current on several phases of a motor feeder, check whether a load is drawing current, or investigate an unexpected difference between similar circuits.
Alternating-current measurement is common in building services, industrial distribution, and many appliance applications. Direct-current measurement is relevant to batteries, control systems, automotive equipment, photovoltaic systems, and electronic power supplies. A meter capable of measuring both forms of current offers broader coverage, but DC clamp measurement generally requires careful zeroing and correct jaw positioning. Residual magnetism or nearby magnetic fields can influence a reading, especially when the measured current is relatively small.
Voltage measurement is normally performed with test leads rather than the clamp jaws. This distinction matters. Users should connect the leads to the appropriate terminals, select the correct function, and observe polarity where direct current is involved. The voltage category of the meter and the leads must be appropriate for the circuit. A meter with an impressive current range is not automatically suitable for every voltage environment.
Resistance and continuity functions are useful when a circuit is de-energized and isolated. They can help identify an open conductor, check a switch contact, assess a fuse, or trace a simple wiring path. They should not be used on an energized circuit unless the manufacturer expressly permits the specific method. Applying external voltage to a resistance range can damage the instrument and create a hazard.
Many professional clamp meters also offer functions such as frequency, capacitance, diode testing, temperature, or non-contact voltage indication. If a listing for the Extech EX900 mentions one of these features, the user should verify its exact operating range, accuracy, probe requirements, and limitations in the official documentation. A feature’s presence does not indicate that it replaces a dedicated instrument for demanding measurements.
It is also important to distinguish between a function being available and a function being appropriate for a particular application. A capacitance range may help check a disconnected capacitor in a service environment, but it may not provide the specialized testing conditions required for large motor-run capacitors or power-factor correction banks. Likewise, a frequency function can indicate the frequency of a suitable signal, but it may not characterize frequency instability or transient distortion in an industrial power system.
Electrical loads are increasingly controlled by electronic power supplies, variable-frequency drives, switching converters, LED drivers, and other nonlinear equipment. These devices can produce waveforms that differ substantially from an ideal sine wave. A meter’s response to such a waveform depends on its measurement design.
True RMS measurement is intended to provide a more meaningful effective-value result for many non-sinusoidal AC signals than an averaging meter calibrated for sine waves. Even so, True RMS does not make every reading automatically correct. Crest factor, bandwidth, conductor position, frequency range, and the nature of the waveform still matter. A user evaluating a variable-speed drive, for instance, should consult the instrument guidance and the drive manufacturer’s recommendations rather than assume that a general-purpose clamp meter captures every relevant characteristic.
The distinction is especially important when readings are used to judge heating, loading, or protective-device behavior. A current value that appears plausible on the display may not represent the complete electrical stress if high-frequency components, harmonics, or rapidly changing loads are outside the instrument’s effective measurement performance.
Waveform considerations also affect comparisons between instruments. Two meters may display different values on the same nonlinear load because their bandwidths, filtering, sampling methods, or RMS algorithms differ. Such a difference does not automatically mean that one meter is defective. The technician should review the specifications, use a known reference where available, and determine whether the measurement question concerns fundamental current, total RMS current, or another quantity.
Electrical measurement is a safety-critical activity. The Extech EX900 should be used only within the voltage, current, measurement category, and environmental limits stated in its documentation. Measurement categories, commonly expressed as CAT II, CAT III, or CAT IV, describe the expected transient environment and installation location. They are not simple indicators of overall product quality and should not be interpreted without considering the complete system.
CAT II generally relates to circuits connected to utilization points, such as appliances and receptacles. CAT III is associated with distribution-level installations, including fixed equipment and building distribution panels. CAT IV concerns the origin of an installation and outdoor or service-entrance environments. These descriptions are general; the applicable standard and manufacturer markings should govern the decision.
Before using the Extech EX900, a qualified user should inspect the meter body, clamp jaws, rotary selector, display, test leads, probe insulation, finger guards, and terminal markings. Cracked insulation, loose leads, damaged shrouds, contaminated jaws, or an unreadable display are reasons to remove the instrument from service until it has been assessed.
Personal protective equipment does not make an unsafe procedure safe. Appropriate gloves, eye protection, arc-rated clothing, insulated tools, barriers, and lockout procedures should be selected according to the installation and the organization’s electrical-safety program. Where de-energization is practical, it remains a central risk-control measure.
Important limitation: A clamp meter can reduce the need to open a circuit for current measurement, but it does not eliminate exposure to energized conductors. The user may still be near hazardous voltage, arc-flash energy, rotating machinery, or unexpected fault current.
Another important issue is the difference between testing for absence of voltage and merely observing a zero display. A zero reading on the wrong function, an incorrectly connected lead, a depleted battery, or a failed instrument does not prove that a circuit is safe. When an installation must be treated as de-energized, the organization’s approved test-before-touch procedure should be followed, including verification of the tester on a known live source where required by the procedure.
Product listings can use similar language while describing different packages or regional versions. A careful buyer should compare the model number, revision, included accessories, warranty terms, and documentation rather than relying on a single marketplace description.
| Selection factor | Why it matters | What to verify |
|---|---|---|
| Current type | Different work environments require AC, DC, or both. | Confirm whether the specific instrument measures AC, DC, or combined current and review the relevant ranges. |
| Maximum current | The expected load must remain within the meter’s stated limit. | Check continuous and time-limited ratings, not only the headline maximum. |
| Jaw opening | A current range is of little use if the jaws cannot close around the conductor. | Compare the conductor or cable assembly diameter with the specified jaw capacity. |
| Voltage category | Transient exposure varies between outlet circuits, distribution systems, and service entrances. | Read the markings on the instrument and leads and match them to the installation. |
| Accuracy and resolution | Small maintenance decisions may depend on detecting modest differences between readings. | Review accuracy formulas, resolution, range selection, and environmental conditions. |
| Additional functions | Extra functions can reduce the need to carry several instruments. | Confirm the function, range, accuracy, probe requirements, and limitations. |
| Calibration support | Traceable measurement may be required by an employer, client, or quality system. | Ask about calibration intervals, certificates, service centers, and adjustment policy. |
| Accessories and documentation | Incorrect or incomplete accessories can restrict safe use. | Check test leads, temperature probes, batteries, case, manual, and language options. |
Jaw capacity deserves particular attention. The stated opening may accommodate a single insulated conductor while failing to accommodate a large flexible cable, conduit assembly, busbar, or several conductors grouped together. Even when the jaws physically close, the arrangement may be unsuitable if the measurement includes more than one current path or if the conductor cannot be positioned securely.
Users should also consider the display, control layout, backlight, hold function, automatic shutdown, and resistance to field handling. These features do not replace electrical specifications, but they influence practical performance. A meter that is difficult to read inside a panel or that shuts down during a long diagnostic procedure can introduce unnecessary inconvenience and encourage unsafe working habits.
Accuracy specifications are often presented as a percentage of the reading plus a number of digits. A simplified example might be written as ±(percentage of reading + digits), although the exact values for the Extech EX900 must be taken from the applicable datasheet. The percentage component changes with the measured value, while the digits component reflects the display resolution. This means that accuracy is not a single constant number across the entire range.
Suppose a specification were expressed hypothetically as ±(1.0% of reading + 5 digits) on a range with a defined resolution. The uncertainty would be calculated from the displayed value and the least significant digit of that range. This example is for explanation only and should not be used as the specification of the Extech EX900.
Temperature, humidity, frequency, battery condition, conductor position, jaw closure, and electrical noise can also affect results. A technician should avoid presenting more precision than the instrument supports. If a display shows many digits, that does not mean every digit represents a separately trustworthy measurement.
For comparative maintenance, repeatability may be as useful as absolute accuracy. Measuring the same motor under similar operating conditions over time can reveal a trend. Nevertheless, trend data is meaningful only when the measurement method is consistent and the instrument remains within calibration.
Resolution and accuracy should also be matched to the expected signal. A high-current range may be useful for a large feeder but may provide insufficient detail for a small control-circuit load. If the meter permits manual range selection, using the lowest suitable range can improve displayed resolution. The range must still accommodate expected fluctuations and must never be selected in a way that risks an overrange condition.
The following procedure is a general educational framework. The Extech EX900 manual, workplace procedures, applicable electrical codes, and the judgment of a qualified person take priority.
This procedure is intentionally conservative. It does not authorize work on energized equipment, and it does not replace formal electrical-safety training. In a commercial or industrial setting, the employer’s risk assessment and permit system should define who may perform the measurement and under what controls.
When comparing multiple conductors, use a consistent sequence and allow the equipment to remain in a comparable operating state. Motors may change load as valves move, compressors cycle, fans adjust speed, or process conditions change. A phase comparison made several minutes apart may reflect changing operation rather than a true phase imbalance.
Voltage measurement involves direct electrical contact and therefore can create a greater exposure than clamp-based current measurement. The test leads must be connected to the correct terminals, the selector must be set to the intended function, and the probes must be held behind their finger guards.
For AC voltage, the result should be interpreted in relation to the nominal system and the expected operating state. For DC voltage, polarity is relevant, and a negative sign may indicate that the probes are reversed rather than that the circuit is defective. When testing control systems, confirm whether the circuit uses a floating reference, a common return, or a grounded negative conductor.
Users should never place a lead in a current terminal and then touch it across a voltage source. This is a common and potentially dangerous misuse of multimeters. Before changing from current-related lead positions to voltage measurement, inspect the terminal arrangement and confirm the terminal and selector positions.
Voltage readings can also be misleading when the circuit is lightly loaded or when a high-impedance meter detects a so-called ghost voltage. Where appropriate and permitted by the work procedure, a qualified technician may need a suitable low-impedance testing method to determine whether the voltage can deliver meaningful current. This is an application-specific decision and should not be improvised.
Resistance and continuity measurements should normally be conducted on isolated, de-energized circuits. Stored energy in capacitors and inductive components must also be considered. A circuit may appear switched off while retaining charge or receiving power from another source.
Continuity mode is helpful for fast checks, but its audible response is not a substitute for a resistance value or a complete circuit analysis. The threshold at which a meter activates its buzzer varies by design. A low-resistance path may be expected through a coil, heating element, or motor winding, while a resistance measurement across a parallel circuit may not identify the individual component condition.
Diode testing applies a controlled test voltage and displays a forward-voltage result when the component is oriented correctly. Components connected to surrounding circuitry can produce confusing readings. If the result is unexpected, isolate the component or consult the circuit diagram rather than concluding immediately that the diode has failed.
Capacitors should be discharged through an appropriate controlled method before testing. Simply shorting terminals with a tool is not a reliable universal procedure and can create an arc, damage the component, or injure the user. Large capacitors and power-electronic assemblies may require additional precautions and a verified discharge measurement.
When investigating a motor-driven system, technicians may compare current across phases, observe current at startup or under load, and relate the readings to mechanical conditions. A difference between phases can indicate a supply issue, connection problem, imbalance, or motor condition, but current readings alone do not identify the cause. Voltage, connections, load, temperature, insulation, and mechanical alignment may all require additional examination.
Starting current can exceed running current by a substantial amount and may change too quickly for a general handheld display to capture precisely. If the diagnostic question concerns inrush duration, starting profile, or protective-device coordination, a meter with suitable min/max capture or recording capability may be needed. The EX900 should not be assumed to provide a particular capture function unless it is confirmed in the manual.
The Extech EX900 may assist with checking compressor, fan, blower, and auxiliary circuit current where the measurement category and current range are suitable. HVAC loads can change as thermostats, variable-speed drives, and control boards respond to operating conditions. A single reading taken during an unusual cycle should not be treated as a complete diagnosis.
Technicians should compare the reading with the equipment nameplate, manufacturer service data, outdoor temperature, refrigerant conditions, fan speed, and the specific operating mode. A compressor current that seems high may be associated with mechanical or refrigerant conditions rather than an electrical fault alone. Electrical readings should support, not replace, the broader service procedure.
In control panels, the instrument can support checks of supply voltage, relay circuits, fuses, and current draw. Space is often limited, and conductors may be tightly grouped. The user must ensure that the jaws encircle only the intended conductor and that the instrument does not contact adjacent terminals or exposed conductive surfaces.
Panel work requires careful attention to barriers, covers, terminal spacing, and the possibility of backfeed from multiple sources. A circuit labeled as a control circuit may still be supplied from a hazardous voltage source. Drawings and labels should be treated as useful information, but not as a substitute for verification.
Direct-current clamp measurement can be helpful in battery-backed systems and selected renewable-energy applications. DC readings are sensitive to zero offset and conductor placement. In systems with several parallel conductors, each conductor should be assessed according to the diagnostic objective. The total current may not be understood by measuring only one branch.
Solar photovoltaic systems create special hazards because modules can remain energized in daylight, and battery systems can deliver very high fault current even at relatively low nominal voltage. The instrument’s voltage category and current capability must be considered alongside the system’s stored energy and disconnect arrangement.
Preventive maintenance benefits from consistent measurement records. A facility can establish normal operating bands for selected equipment and investigate changes over time. These bands should be based on the equipment manufacturer’s data, engineering judgment, and historical observations, not on arbitrary values copied from an unrelated installation.
Current trending is most useful when the same measurement points, operating modes, and procedures are used repeatedly. If a motor is measured at full process load during one inspection and partial load during another, the values may not be directly comparable. Including operating conditions in the maintenance record prevents many incorrect conclusions.
| Error | Likely consequence | Better practice |
|---|---|---|
| Clamping around multiple conductors | Magnetic fields may cancel or combine, creating a misleading result. | Normally clamp around one conductor unless a specific diagnostic method requires another arrangement. |
| Failing to zero a DC clamp function | A constant offset can appear in the current reading. | Follow the zero procedure before measuring and repeat it if conditions change. |
| Using the wrong measurement category | The meter and user may be exposed to transients beyond their design. | Match the meter and leads to the installation category and voltage. |
| Reading a changing load as a fixed value | The recorded number may not represent normal operation. | Observe the load cycle and document the operating condition. |
| Ignoring jaw closure | Magnetic coupling may be incomplete and accuracy may suffer. | Keep the jaws clean and fully closed around the conductor. |
| Testing resistance on an energized circuit | The instrument can be damaged and the user may face electrical danger. | Isolate, lock out where applicable, and verify absence of voltage. |
| Relying on a damaged lead | Insulation failure can expose the user to hazardous voltage. | Inspect and replace damaged leads with correctly rated accessories. |
| Assuming a large range guarantees precision | Small currents may be displayed with limited resolution or accuracy. | Select the lowest suitable range and review the specification. |
| Positioning the conductor at the jaw edge | Position-dependent error may increase. | Center the conductor when practical and use a consistent position for comparisons. |
| Ignoring nearby conductors | External magnetic fields may influence a low-current reading. | Separate the measurement point or verify the result with another method. |
Instrument care begins with routine inspection. Wipe the exterior with a compatible, lightly dampened cloth according to the manufacturer’s cleaning guidance. Do not immerse the meter, apply solvents without confirmation, or allow moisture to enter the jaw mechanism, terminals, or selector. Dirt on the jaw faces can interfere with closure and should be removed using an approved method.
Batteries should be replaced when the low-battery indicator appears or when the meter behaves inconsistently. If the instrument will be stored for an extended period, follow the manufacturer’s battery-storage recommendation. Leakage can damage internal contacts and may compromise later measurements.
Calibration requirements depend on use, risk, quality procedures, and the consequences of an incorrect result. A laboratory, utility, contractor, or manufacturing facility may specify a periodic interval, while a lower-risk user may adopt a different documented approach. Calibration should be performed by a competent service provider using equipment with suitable traceability. A calibration certificate confirms performance at the time and conditions of the test; it does not guarantee that the meter remains accurate after damage or misuse.
After a drop, exposure to excessive heat, contact with a fault, or suspected overload, the Extech EX900 should be removed from service and evaluated. External appearance alone cannot establish that internal protection components remain effective.
Storage conditions matter as well. The meter should be protected from excessive humidity, crushing forces, direct sunlight, and contamination. Test leads should not be wrapped tightly around the instrument in a way that stresses the insulation or creates sharp permanent bends. Keeping the meter in its protective case, where supplied, can reduce damage during transport between work locations.
Because no supplier, location, or price was specified for this guide, it would be inappropriate to state a particular purchase price or identify a preferred seller. The cost of an Extech EX900 can vary according to region, stock status, warranty, tax, shipping, calibration certification, and whether the package is new, used, or refurbished. Buyers should compare complete landed cost and seller support rather than selecting solely on the lowest listed amount.
A reputable supplier should be able to provide a clear model number, manufacturer documentation, warranty information, return conditions, and details of included accessories. Commercial purchasers may also need a tax invoice, calibration certificate, serial-number record, or evidence of supply-chain authenticity.
Before placing an order, ask the following questions:
For business use, procurement teams should also check whether the supplier is recognized by the manufacturer or operates through an established electrical-test-equipment channel. This does not remove the need to inspect the item on arrival, but it can reduce uncertainty about provenance and support.
On receipt, compare the package contents with the order and inspect the meter before putting it into service. Confirm that labels are legible, the jaws open smoothly, the display operates correctly, and the supplied leads fit securely. If the organization requires calibration, do not assume that a factory seal or marketplace description is equivalent to a current calibration certificate.
| Condition or requirement | Minimum consideration |
|---|---|
| User competence | The operator should understand electrical hazards, instrument functions, and the limits of the measurement. |
| Installation assessment | Identify system voltage, fault exposure, conductor arrangement, accessibility, and environmental risks before testing. |
| Instrument suitability | Confirm current, voltage, frequency, jaw capacity, measurement category, and environmental ratings. |
| Equipment condition | Use only an instrument, clamp mechanism, leads, and probes that are intact and correctly rated. |
| Isolation for non-current tests | Resistance, continuity, diode, and capacitance work generally requires de-energization and discharge. |
| Measurement documentation | Record circuit identity, operating state, range, reading, date, and instrument information when traceability matters. |
| Calibration control | Follow the organization’s calibration policy and remove the meter from service if accuracy is questioned. |
| Environmental control | Stay within the specified temperature, humidity, altitude, and pollution conditions. |
The right comparison is not always between one clamp meter and another. It may be between a clamp meter and a traditional multimeter, a flexible current probe, a current transformer, or a dedicated power analyzer.
| Test approach | Strength | Limitation | Typical use |
|---|---|---|---|
| Extech EX900-style clamp meter | Measures current around a conductor and may combine several routine functions in one handheld instrument. | May not provide detailed waveform, harmonic, energy, or power-quality analysis. | Maintenance, troubleshooting, commissioning, and general electrical checks. |
| Standard digital multimeter | Often offers strong voltage, resistance, and low-current measurement capabilities. | Current measurement may require circuit interruption and lead insertion. | Bench work, control circuits, and de-energized fault finding. |
| Flexible current probe | Can reach around large or crowded conductors. | May require a separate meter and can have different accuracy and safety considerations. | Large conductors, busbars, and restricted spaces. |
| Power-quality analyzer | Provides deeper information about waveform, harmonics, events, and power behavior. | Usually more complex, costly, and less convenient for quick checks. | Advanced diagnostics and documented power-system investigations. |
| Dedicated insulation tester | Designed for insulation resistance assessment at specified test voltages. | Not a replacement for general current and voltage measurement. | Cable, motor, transformer, and installation insulation testing. |
From an industry perspective, the Extech EX900 is very defensible when it is used as a versatile field meter for defined tasks. It becomes a poor choice when a project requires synchronized logging, harmonic analysis, high-energy fault investigation, or specialized compliance testing that the instrument was not designed to perform.
A traditional multimeter may still be preferable for delicate electronics, very low current, or bench measurements where the conductor can be disconnected safely. A flexible probe may be preferable where rigid jaws cannot reach around a large busbar. A power analyzer may be required where the question concerns energy consumption, harmonic distortion, phase angle, or voltage events. The best instrument is the one whose measurement principle and safety design match the task.
A measurement is only one piece of evidence. An experienced technician compares the reading with the circuit design, equipment nameplate, previous maintenance records, ambient conditions, and the behavior of related measurements.
For example, elevated motor current may result from mechanical overload, low voltage, phase imbalance, bearing problems, incorrect configuration, or a process condition. A low reading may indicate light loading, a disconnected branch, a failed component, or a measurement error. The same numerical value can have different meanings in different systems.
Comparison is often valuable. On a three-phase system, measurements should be taken under comparable load conditions and interpreted with attention to the system design. In a DC system, the direction and path of current should be understood before the clamp is placed. In a control panel, a reading should be associated with the relevant fuse, relay, terminal, or actuator rather than treated as an isolated number.
When a result appears surprising, repeat the measurement using a controlled method. Check the range, confirm the conductor count inside the jaws, inspect jaw closure, zero the meter if appropriate, compare with a second suitable instrument, and verify the operating condition. If the discrepancy remains, escalate the investigation.
Good interpretation also involves knowing what the meter cannot reveal. A current reading does not directly show insulation condition, contact resistance, shaft alignment, bearing temperature, harmonic distortion, or the cause of a protective trip. It can indicate that further testing is justified, but additional instruments and procedures may be required to identify the actual fault.
Field work often occurs in places that are less controlled than a laboratory. Dust, moisture, vibration, heat, cold, glare, cramped panels, and poor access can all affect safe operation. The operator should ensure that the display can be read without adopting an unstable posture and that the clamp can be opened and closed without placing the hand near exposed conductive parts.
Ergonomics also influences accuracy. A technician who is stretching, working overhead, or trying to hold several tools at once is more likely to position the clamp poorly or select the wrong function. Planning the measurement, using a suitable work platform, and securing loose items can improve both safety and data quality.
In damp or contaminated locations, confirm the instrument’s environmental limitations before proceeding. Water resistance should never be assumed from a rugged appearance. If condensation, rain, conductive dust, or chemical exposure is present, the correct response may be to postpone the work or use equipment specifically approved for the environment.
Temperature extremes can affect both the meter and the equipment being tested. If a reading is close to a decision threshold, allow the instrument to reach the specified operating environment where practical, and consider whether the equipment itself is operating in an unusual thermal condition. A hot motor, cold battery, or recently energized transformer may not produce a representative result.
Organizations that depend on repeatable maintenance should establish a simple measurement record. It can include:
This record transforms an isolated reading into maintenance evidence. It also helps distinguish a genuine equipment trend from changes caused by a different load, a different conductor position, a replacement meter, or a measurement performed outside the normal procedure.
For critical equipment, records can include photographs of the measurement point, phase identification, and the equipment status at the time of testing. Digital maintenance systems may allow readings to be plotted over time, making it easier to identify gradual increases in current or recurring deviations. The value of such records depends on consistent data collection and clear descriptions.
The principal source for technical specifications, safety ratings, operating instructions, accuracy limits, accessory compatibility, and maintenance procedures should be the current Extech documentation for the EX900. Supplier listings may be useful for availability and package information, but they should not override the manufacturer’s manual or the markings on the instrument.
For general electrical-safety practice, organizations should consult the standards and regulations applicable to their jurisdiction, along with recognized workplace safety guidance. In the United States, resources from the Occupational Safety and Health Administration and the National Fire Protection Association are commonly consulted for workplace electrical safety and electrical installation practices. Other countries may apply different regulatory frameworks. The responsible employer or electrical authority should determine which requirements govern the work.
Where measurement traceability is required, calibration should be supported by a competent laboratory and a documented quality process. The exact accreditation or certificate requirement depends on the customer, industry, contract, and applicable standard.
Documentation should be checked against the exact model and revision. Similar model numbers can have different ranges, functions, or safety markings. If the manual is unavailable, incomplete, or inconsistent with the instrument label, the meter should not be used for a high-risk application until the discrepancy has been resolved.
The Extech EX900 is used for clamp-based current measurement and related electrical testing, subject to the functions and limits of the specific model documentation. Typical applications include maintenance, troubleshooting, commissioning, and inspection of electrical equipment. It should be selected according to the circuit hazard and measurement objective.
Product information commonly associates the EX900 designation with AC/DC clamp-current capability, but the exact ranges and operating conditions should be confirmed in the current manufacturer datasheet. DC clamp measurements may require zeroing and careful attention to conductor position and magnetic interference.
For a typical clamp-current measurement, the jaws are placed around a conductor, so the conductor does not normally need to be disconnected. Voltage, resistance, continuity, diode, and other lead-based tests are different and may require isolation or de-energization. The method must follow the manual and workplace safety procedure.
If the cable contains both the outgoing and returning conductors inside the jaws, their magnetic fields may cancel. The clamp should generally surround one conductor for a conventional current measurement. In a crowded installation, verify conductor identity and jaw placement before interpreting the result.
It may be suitable for selected industrial-panel tasks when its safety category, voltage rating, current capability, jaw size, and environmental limits match the installation. Industrial equipment can contain significant fault energy, so the meter’s presence does not by itself make energized testing appropriate.
No. A general-purpose clamp meter can support routine current and voltage checks, but a power-quality analyzer is intended for more detailed evaluation of waveform distortion, harmonics, events, energy, and related characteristics. Choose the instrument according to the diagnostic question.
There is no universal interval suitable for every user. The interval should reflect organizational policy, frequency of use, operating conditions, risk, contractual requirements, and any suspected overload or damage. Follow the manufacturer’s recommendations and the quality system governing the work.
Confirm the exact model, current and voltage ranges, AC/DC capability, accuracy, jaw opening, measurement category, included leads and accessories, warranty, calibration options, supplier reputation, and return conditions. Also verify that the documentation matches the intended region and application.
Differences can result from waveform shape, bandwidth, range resolution, conductor position, jaw closure, calibration, load variation, or the use of different measurement technologies. Compare instruments under stable conditions and within their specified limits rather than assuming that the larger reading is correct.
Resistance testing should not be performed on a live circuit. External voltage can damage the meter and create a shock or arc hazard. Isolate the circuit, control stored energy, verify the absence of voltage with an appropriate method, and follow the applicable safety procedure.
A low-battery indication means the battery should be replaced according to the manufacturer’s instructions. Low power can affect operation, display behavior, or measurement reliability. If the instrument remains abnormal after replacement, it should be inspected rather than returned immediately to service.
Not necessarily. The final value depends on authenticity, condition, warranty, included accessories, calibration documentation, shipping, taxes, and after-sales support. A transparent supplier with clear documentation may offer a more suitable purchase than a lower-priced listing with uncertain provenance.
The Extech EX900 can be a practical component of a professional electrical-testing kit when its capabilities align with the work. Its clamp format supports current measurement with less circuit interruption than conventional series-current testing, while its associated multimeter functions may help with routine voltage, resistance, continuity, and related checks.
The strongest purchasing decision is based on verified specifications rather than broad product claims. Confirm the exact current and voltage capabilities, safety category, jaw capacity, accuracy, accessories, calibration pathway, and supplier conditions. During use, apply a disciplined procedure: assess the installation, inspect the instrument, select the correct function, clamp around the appropriate conductor, document operating conditions, and interpret the result in context.
Used within those boundaries, the Extech EX900 may provide useful evidence for maintenance and troubleshooting. Used outside them, even a sophisticated meter can produce misleading results or expose the operator to unacceptable risk.
